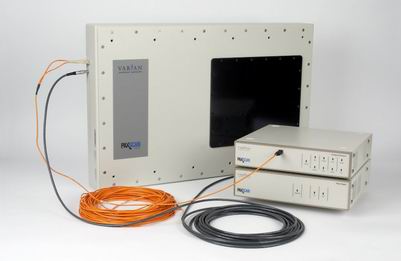

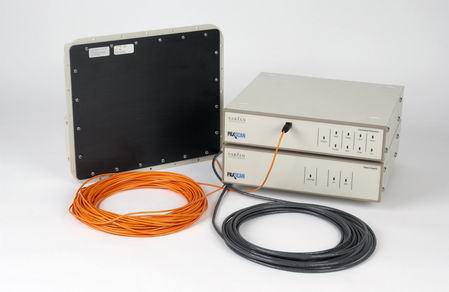

PaxScan 2520: Amorphous Silicon Digital X-Ray Detector

The PaxScan® 2520 is a real-time and radiographic digital x-Ray imager incorporating a large-area amorphous silicon sensor array with a gadolinium oxysulfide or cesium iodine scintillator.

The PaxScan® 2520 will acquire images at usual video frame rates over a wide range of dose. A high kV option is available for energy ranges up to 1,000 kVp.

The PaxScan® 2520 is a real-time and radiographic digital x-Ray imager incorporating a large-area amorphous silicon sensor array with a gadolinium oxysulfide or cesium iodine scintillator.

The PaxScan® 2520 will acquire images at usual video frame rates over a wide range of dose. A high kV option is available for energy ranges up to 1,000 kVp.

PaxScan 2520E: Portable Digital Direct Radiographic Panel

The PaxScan® 2520E+ is a Ruggedized portable X-ray imaging component designed for high-speed radiographic DR imaging in the field. A user-supplied laptop running Varian ViVA™ application software and an optional battery-operated interface module is available to operate the 2520E+ up to two (2) hours on a single charge.

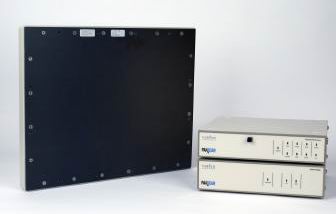

PaxScan 4030A: Varian Amorphous Silicon Digital X-Ray Detector

The PaxScan® 4030A is a real-time digital x-ray imaging device commonly referred to as a flat panel detector (FPD). The main system components are the 40 x 30cm 194µm-pixel amorphous silicon PFD, real-time image and command processor, and universal dual-output power supply. Excellent low-dose performance is achieved by combining Varian’s proprietary readout electronics with the high sensitivity of a custom Cesium Iodine scintillator. A Windows® 2000 based application program and a communications command (DLL) library has also been developed to assist OEM customers tasked with developing their own system interface. This imager is intended for incorporation into a complete X-Ray system by a qualified equipment manufacturer.

PaxScan 4030E: Varian Amorphous Silicon Digital X-Ray Detector

The PaxScan® 4030E is a digital X-ray imaging system designed for high-speed radiographic imaging in the field. Based upon the new Gigabit Ethernet interface, images are displayed instantaneously on a user-supplied PC running Varian ViVA™ application software.

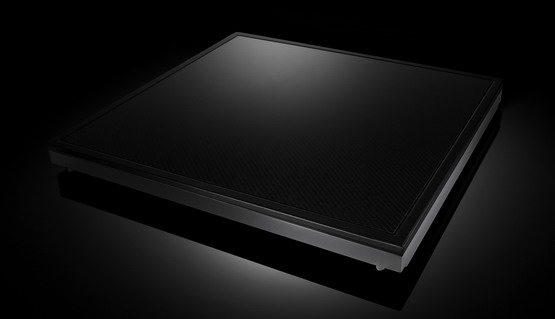

LTX-1717 Digital Flat Panel X-Ray Detector

Introducing the latest TFT technology in a portable flat panel x-ray detector specifically designed for high resolution digital x-ray imaging. Featuring a large 17.3 x 17.3 inch image area in a slim light weight design. Ideal for easily converting from conventional x-ray film to digital radiography with images produced in less than five seconds. The LTX-1717 is compatible with all x-ray sources up to 150kVp, including portable pulsed devices. Conversion to digital can be accomplished in minutes. Computer and imaging software included.

LTX-1717 Applications:

• Zoological Studies
• Sedimentology
• Ichthyology
• Conservation
• EOD Bomb Disposal
• Security
• Research
• Quality Control

Complete on-site installation and training available.

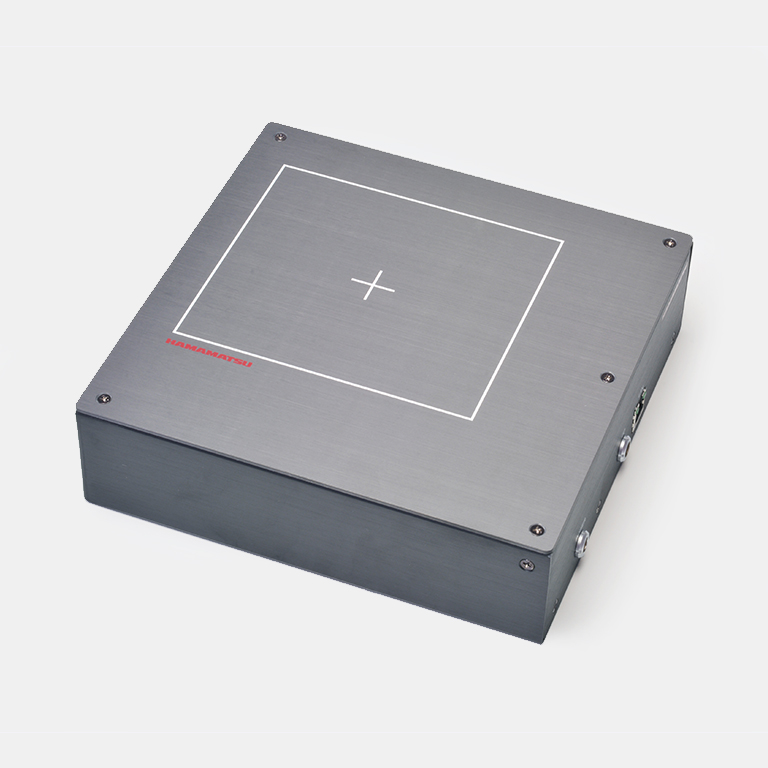

The Hamamatsu C16401SK-51 is a high-speed X-ray flat panel sensor designed for real-time nondestructive inspection and industrial radiography. It features a 140.0 × 122.8 mm photosensitive area, 100 µm pixel pitch, up to 1272 × 1104 effective pixels, and a GOS scintillator for detailed digital X-ray imaging. With 16-bit output, Gigabit Ethernet connectivity, a typical frame rate of 21 fps, low noise, and support for X-ray tube voltages up to 160 kV, it is well suited for electronics, component, assembly, and general industrial inspection applications.

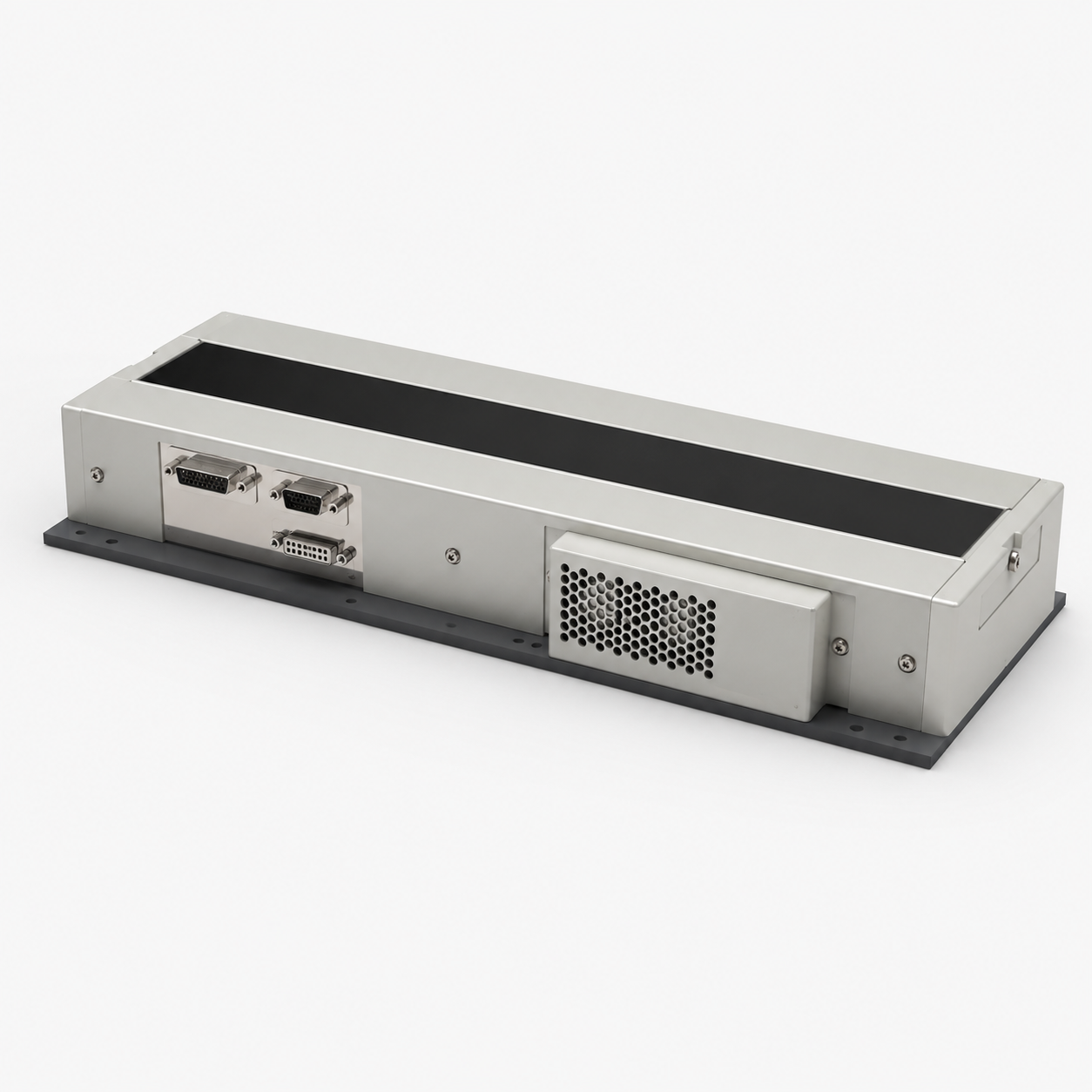

The Hamamatsu C12300 series consists of high-speed X-ray TDI cameras designed for continuous inline inspection of moving products, including electronics, batteries, metal sheets, separators, and large PCBs. The series combines 48 µm pixels, 150-stage TDI integration, CsI scintillators, and sensitive areas up to approximately 293 mm wide to deliver high-resolution, high-sensitivity imaging across broad inspection areas. Depending on the model, it supports line speeds up to 144 m/min, X-ray tube voltages up to approximately 180 kV, bidirectional scanning, real-time correction, and Camera Link output for integration into automated production lines.

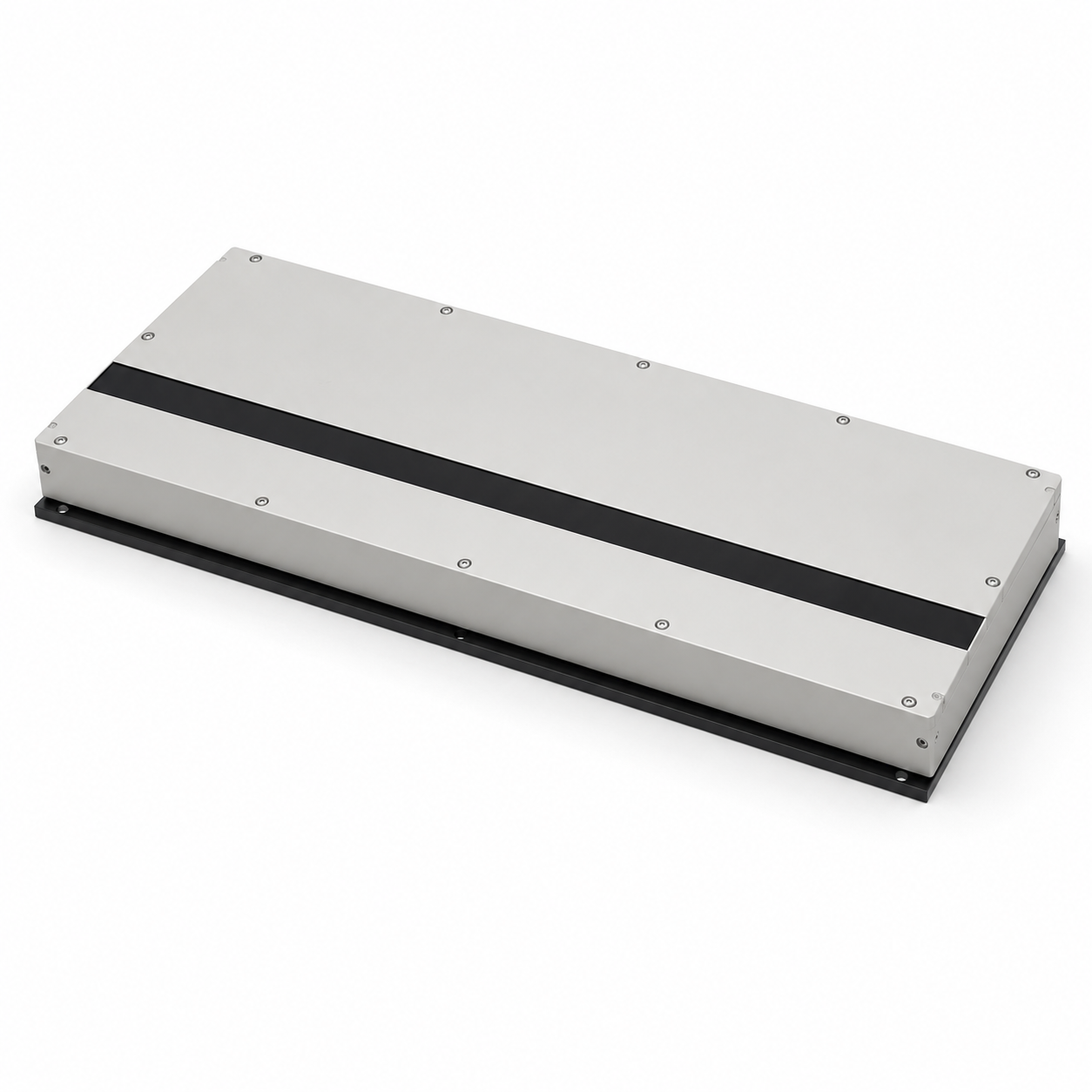

The Hamamatsu C17300 series consists of X-ray TDI-CMOS cameras designed for highly accurate inline inspection of fast-moving products. By combining a CMOS area sensor with the summed or averaged output of multiple sensor lines, the cameras deliver high sensitivity and resolution at conveyor speeds from 4 to 200 m/min. The series offers detection widths of 307.5, 410, or 615 mm, a 0.4 mm pixel pitch, a Gd scintillator, 14-bit digital output, USB 3.0 connectivity, and compatibility with X-ray tube voltages from 10 to 160 kV, making it suitable for automated food, packaging, and industrial inspection systems.

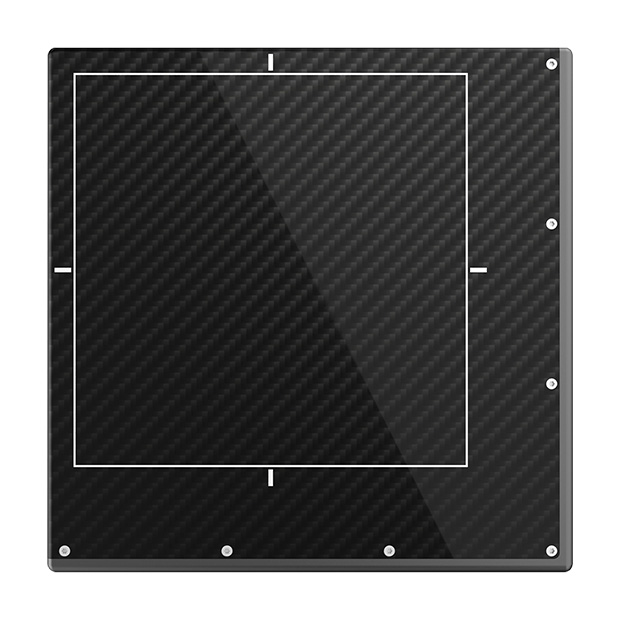

NDT 0505J

The iRay NDT 0505J is a 5 × 5-inch dynamic flat panel detector designed for real-time industrial nondestructive testing. It uses an amorphous-silicon TFT sensor with an approximately 13 × 13 cm imaging area, 85 µm pixel pitch, 16-bit image output, and frame rates up to 40 fps. Its low-noise design, high contrast-to-noise ratio, extended dynamic range, and Gigabit Ethernet interface support detailed, high-throughput inspection of welds, castings, and other industrial components.

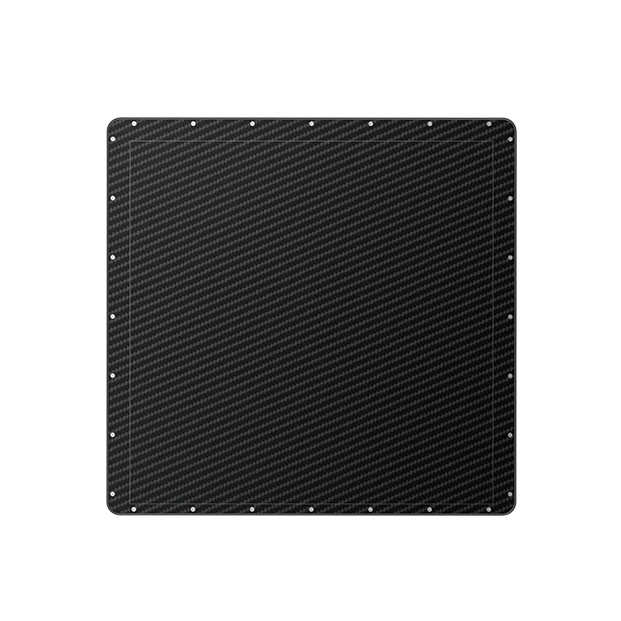

Mercu 1717XN

The iRay Mercu 1717XN is a 17 × 17-inch dynamic flat panel detector designed for real-time X-ray imaging. It combines an amorphous-silicon sensor with directly deposited CsI, a 100 µm pixel pitch, wireless radiography support, and high signal-to-noise performance for distortion-free, low-dose imaging. The detector operates at 2 fps in full resolution, 8 fps with 2 × 2 binning, and up to 25 fps with 4 × 4 binning, making it suitable for applications that require both detailed static images and faster dynamic inspection.

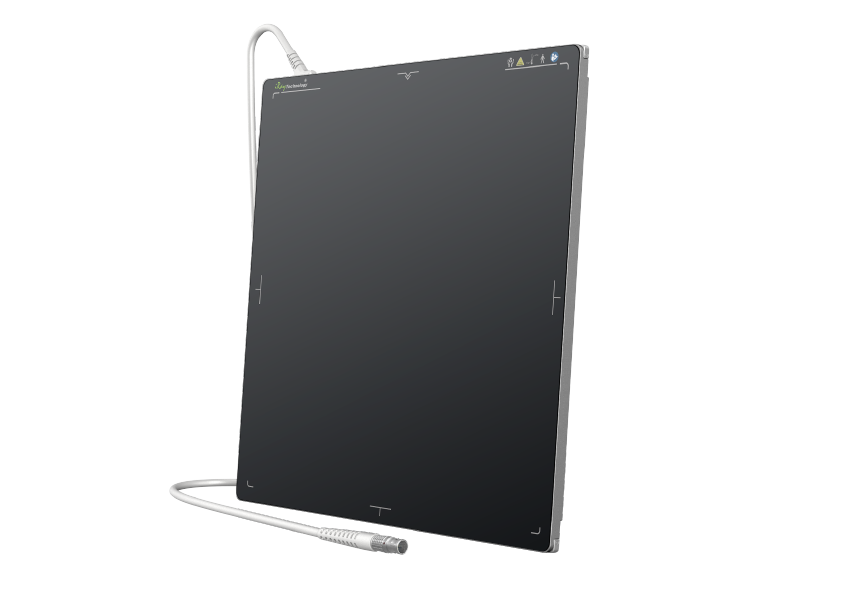

Mercu 1717V3

The iRay Mercu 1717V3 is a 17 × 17-inch dynamic flat panel detector designed for real-time X-ray imaging and high-end digital radiography and fluoroscopy systems. Its amorphous-silicon sensor uses directly deposited CsI to deliver high detective quantum efficiency and strong low-dose image quality, with first-frame lag below 2.5%. The detector supports adjustable gain, optional region-of-interest imaging, and frame rates of 5 fps at full resolution, 20 fps with 2 × 2 binning, and up to 30 fps with 3 × 3 binning.

Carestream Industrex HPX-1: Computed Radiographic Systems

The HPX-1 CR system is the answer you’ve been waiting for—with a feature benefit set that takes CR technology to a new level of performance. Only the HPX-1 has the capability to handle long plates, short plates, rigid cassettes and flexible plates—all in a single system. With industry leading image resolution: the HPX-1 delivers weld-quality images, consistently and dependably, as well as full dynamic range and sensitivity for all other applications.

The system comes fully pre-configured and ready to operate after only a few simple connections. The powerful, easy-to-learn software and intuitive interface minimizes training time; CR operators will be up and running fast. A simplified work flow improves productivity with enhanced annotation capabilities, automatic file naming and a double file save capability (both Industrex and DICONDE formats). The HPX-1 is also transportable, durable, and designed to perform in the harshest of NDT environments.

The HPX-1 has single-handedly upgraded the reliability of digital capabilities in the non-destructive testing marketplace. Multi-plate handling boosts output productivity. A positive pressure filtered air system ensures clean images in the laboratory and remote operations. The shock and vibration resistant design for imaging in harsh environments brings new confidence in using digital imaging in the field. Every aspect of the HPX-1 has been designed with industrial applications in mind, from the ergonomically engineered handles, to the flat straight feed path for the plates.

ScanX-Scout EOD and NDT Portable Computed Radiography System

The ScanX Scout scanning device digitally scans the plates in less than 1 minute and you can then analyse, enhance and record the image on the laptop pc using the customised
ScanView Security Inspection software.

The ScanX Scout produces extremely high resolution x-ray images up to 50 microns with over 65,000 grayscales making it an invaluable system for those who need to make fast, accurate decisions. The unit is of particular benefit to F irst Responders, Law Enforcement Teams and Military Units for search and IEDD, Border Guards for vehicle search, for Special Operations and for Security Managers involved in building search and suspicious package clearance in public areas.

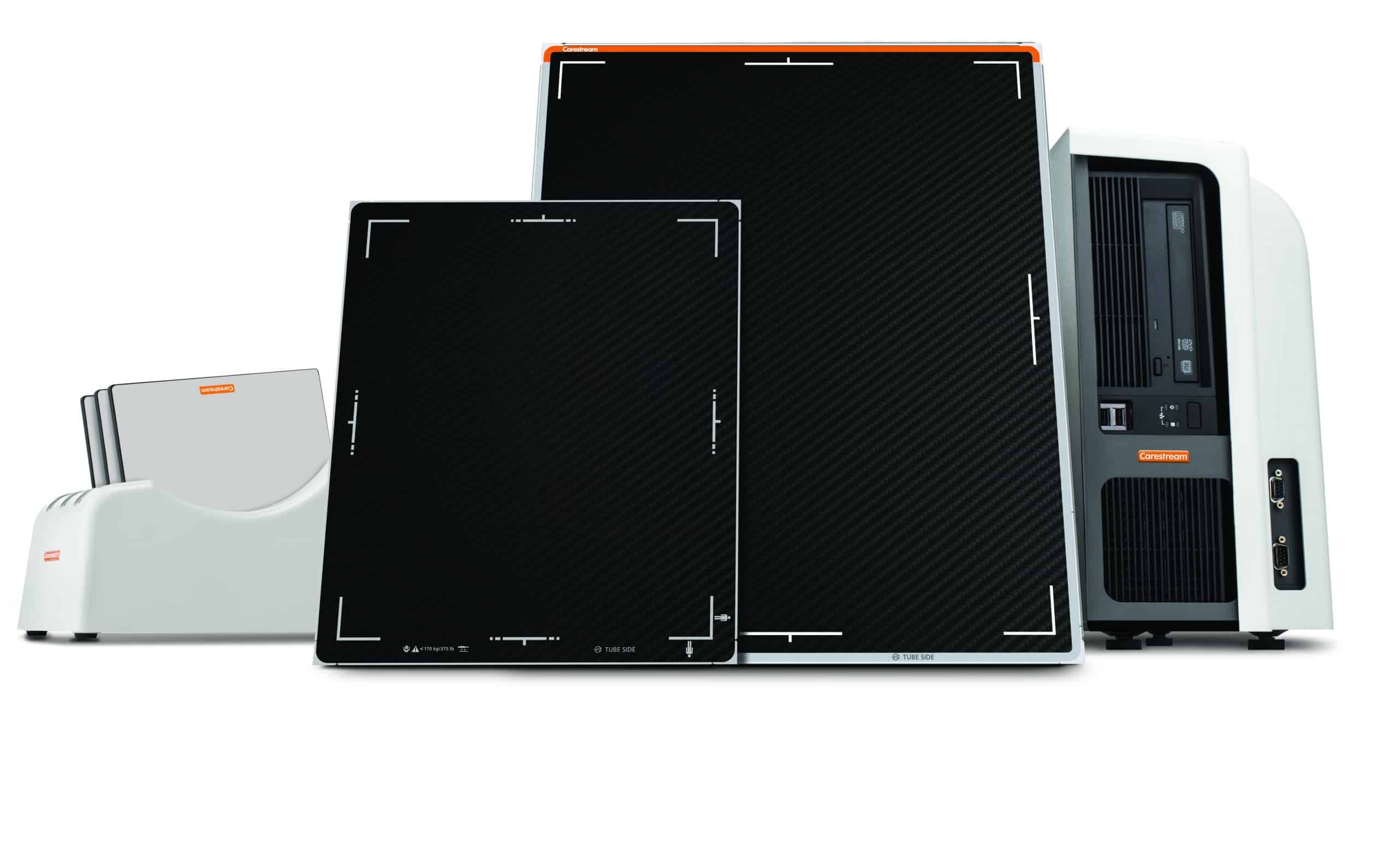

Carestream DRX-1

The Carestream DRX-1 is a wireless, cassette-sized digital radiography detector designed to convert existing X-ray systems from film or computed radiography to direct digital imaging. Its portable detector can be moved between compatible systems, allowing facilities to use a common detector platform across fixed rooms, mobile units, and other imaging equipment. The system delivers rapid image availability, streamlined workflow, and high-quality digital image capture without requiring complete replacement of existing X-ray hardware.
