GOLDEN ENGINEERING

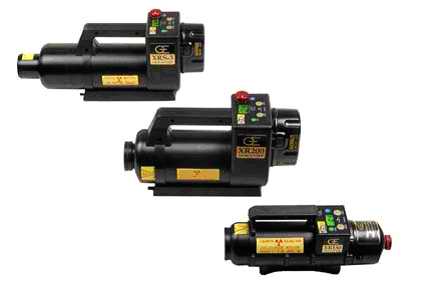

XR150 X-RAY SOURCE
Introduced in 1994, the XR150 is the lightest self-contained X-ray source in the world at just five pounds with battery attached.
| XR150 Size: | XR150 Radiation Leakage: |
| 4.12" (104mm) high x 3.12" (80mm) wide x 10.75" (273mm) long | 0.15 mR for 100 counts measured 1 foot to the side of the unit |
| XR150 Weight: | XR150 Exposure Control: |
| 4lbs 6 oz (2.0kg) with battery | LCD can be set for 3-297 pulses |
| XR150 DC Mode: | XR150 Source Size: |
| 7.2V removable, rechargeable nickel cadmium battery, 2500 pulses per charge | 2.2 mm nominal |
| XR150 Battery Recharge Time: | XR150 Time Delay: |
| 1 hour recharge with supplied external battery charger | Push button triggering of 15 or 60 seconds delay-allowing time to leave area before unit fires |
| XR150 Pulse Rate: | XR150 Output Dose: |
| 10 pulses per second nominal | 1 mR @ 1'/pulse w/filtration equivalent of 2.5mm of aluminum |
| XR150 Pulse Length: | XR150 Maximum photon energy: |
| 60 nanoseconds | 150 kV |
| XR150 Maximum Pulses: | XR150 Warranty: |
| 3,600 per hour | Unit warranty-1 year limited |
