  • TruView 160

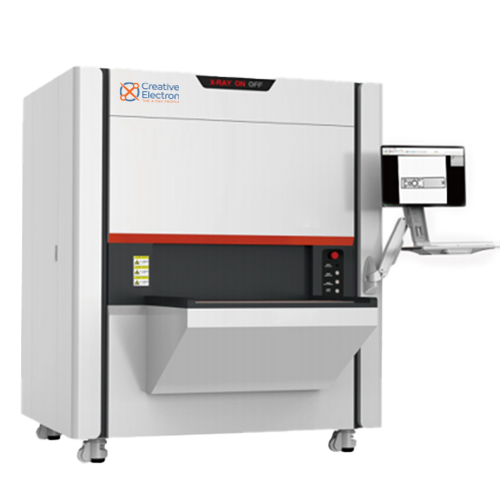

TruView™ 160

X-Ray Inspection Equipment

Primarily utilized for non-destructive testing across a wide range of applications, including metal castings, hardware components, plastic products, refractory and resin materials, review samples, ceramic bodies, and welded metal parts. The system is especially suited for inspecting small and micro-sized products with precision and reliability.

Get a Quote
Footprint 1790(W)×1380(D)×1930(H)mm
Machine Weight 5000 kg
Power Supply AC 380V, 50Hz
Power Consumption 5.0 kW
Detector Flat Panel Detector (FPD)
Pixel Size 154μm
Effective Detection Area 430*430mm
Pixel Matrix 2816*2816
Detector Flat Panel Detector (FPD)
Pixel Size 139μm
Effective Detection Area 427*427mm
Pixel Matrix 3072*3072
ASTM Atlas of castings Equipped with ASTME505/E155 standard atlas, you can refer to the comparison, view
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, etc
CNC Mode CNC automatic detection mode, teaching mode, manual detection mode
Bubble measurement Can automatically measure the porosity per unit area

Motion control mode

automatic detection/manual detection

Max. Loading Weight

30kg

Max. Inspection Area

500*500*200mm
System Summary
  • Footprint: 1790(W)×1380(D)×1930(H)mm
  • Machine Weight: 5000 kg
  • Power Supply: AC 380V, 50Hz
  • Power Consumption: 5.0 kW
X-Ray Tube
  • Tube Type: Sealed
  • Max. Power: 480W
  • Voltage: 160kV
  • Focus Spot Size: 0.5mm
Imaging System
  • Detector: Flat Panel Detector (FPD)
  • Pixel Size: 154μm
  • Effective Detection Area: 430*430mm
  • Pixel Matrix: 2816*2816
Software
  • ASTM Atlas of castings: Equipped with ASTME505/E155 standard atlas, you can refer to the comparison, view
  • Multiple Measuring Tools: Support Measuring Distance, Angle, Diameter, Polygon,etc
  • CNC Mode: CNC automatic detection mode, teaching mode, manual detection mode
Motion Control System
  • Motion control mode: Automatic detection/manual detection
  • Max. Loading Weight: 30kg
  • Max. Inspection Area: 500*500*200mm
