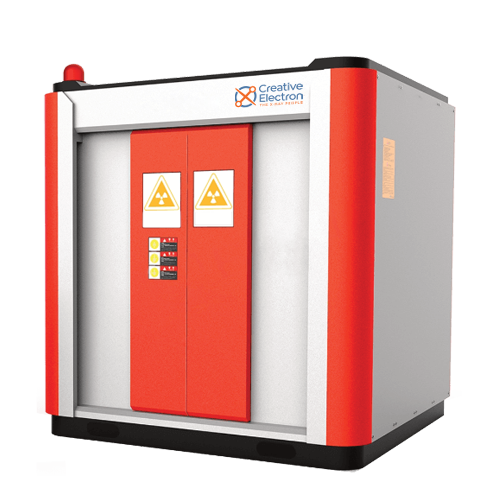

TruView™ 160XL
X-Ray Inspection Equipment
Widely utilized for the inspection of small to medium-sized products, including metal castings, welded components, hardware, plastics, rubber, refractory and resin materials, composite structures, and ceramic bodies. The system serves a broad range of industries such as equipment manufacturing, electronics, automotive, and high-speed rail, delivering reliable non-destructive testing solutions with precision and efficiency.
|
Footprint |
2024(W)×2160(D)×2292(H)mm |
|
Machine Weight |
3200 kg |
|
Power Supply |
AC 380V, 50Hz |
|
Power Consumption |
6.0 kW |
| Tube Type | Sealed |
| Max. Power | 480W |
| Voltage | 160kV |
| Focus Spot Size | 0.5mm |
|
Detector |
Flat Panel Detector (FPD) |
|
Pixel Size |
139μm |
|
Effective Detection Area |
427*427mm |
|
Pixel Matrix |
3072*3072 |
|
ASTM Atlas of castings |
Equipped with ASTM standard atlas, you can refer to the comparison, view |
|
Multiple Measuring Tools |
Support Measuring Distance, Angle, Diameter, Polygon,etc |
|
CNC Mode |
CNC Programmable Inspection, Easy Operation and User Friendly |
|
Bubble measurement |
Can automatically measure the porosity per unit area |
|
Motion control mode |
CNC automatic detection/manual detection |
|
Max. Loading Weight |
100kg |
|
Max. Inspection Area |
600*800mm |
|
Oblique Views |
Max. 15° Filting (FPD) / 360° Rotation (Table) |
System Summary
- Footprint: 2024(W)×2160(D)×2292(H)mm
- Machine Weight: 3200 kg
- Power Supply: AC 380V, 50Hz
- Power Consumption: 6.0 kW
X-Ray Tube
- Tube Type: Sealed
- Max. Power: 480W
- Voltage: 160kV
- Focus Spot Size: 0.5mm
Imaging System
- Detector: Flat Panel Detector (FPD)
- Pixel Size: 139μm
- Effective Detection Area: 427*427mm
- Pixel Matrix: 3072*3072
Software
- ASTM Atlas of castings: Equipped with ASTM standard atlas, you can refer to the comparison, view
- Multiple Measuring Tools: Support Measuring Distance, Angle, Diameter, Polygon,etc
- CNC Mode: CNC Programmable Inspection, Easy Operation and User Friendly
- Bubble measurement: Can automatically measure the porosity per unit area
Motion Control System
- Motion control mode: CNC automatic detection/manual detection
- Max. Loading Weight: 100kg
- Max. Inspection Area: 600*800mm
- Oblique Views: Max. 15° Filting (FPD) / 360° Rotation (Table)
