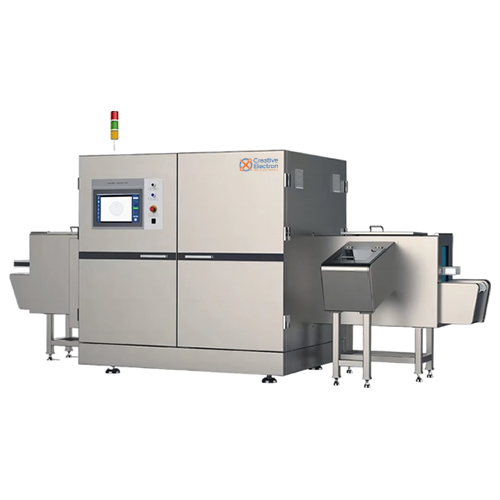

TruView™ 1830
X-Ray Inspection Equipment
Engineered for the detection of foreign matter contaminants in bottled food products and similar packaged goods. The system ensures precise, high-speed inspection to maintain product integrity, protect consumer safety, and meet rigorous food industry standards.
|
Footprint |
4295(W)X1390(D)X2131(H)mm |
|
Machine Weight |
1800 kg |
|
Power Supply |
AC 110/220V, 50/60Hz |
|
Tube Type |
Sealed |
|
X-ray Source |
210/480W、100-120kV |
|
Detector |
0.4/0.8mm high resolution detector |
|
Channel size |
400mm(W)*150mm(H) |
|
Conveyor Speed |
10-90M/min |
|
Max. Loading weight |
10kg |
|
Detection Accuracy |
SUS BALL≥ø0.3mm |
|
SUS wire≥ø0.2*2mm |
|
|
Glass ball≥ø1.0mm |
|
|
Ceramic ball≥ø1.0mm |
- Easy to operate: one button start&stop, optional default product;
- Multiple source and perspective viewing angle realize 360° detection without dead angle in the container;
- Liquid level measurement, adjustable viewing height;
- The detection sensitivity reaches the industry’s highest standard intelligent algorithm based on in-depth learning of AI
Equipment Features
- Footprint: 4295(W)X1390(D)X2131(H)mm
- Machine Weight: 1800 kg
- Power Supply: AC 110/220V, 50/60Hz
- Tube Type: Sealed
- X-ray Source: 210/480W、100-120kV
- Detector: 0.4/0.8mm high resolution detector
- Channel size: 400mm(W)*150mm(H)
- Conveyor Speed: 10-90M/min
- Max. Loading weight: 10kg
Capability
- Detection Accuracy
- SUS BALL≥ø0.3mm
- SUS wire≥ø0.2*2mm
- Glass ball≥ø1.0mm
- Ceramic ball≥ø1.0mm
Additional Functions
-
Easy to operate: one button start&stop, optional default product;
-
Multiple source and perspective viewing angle realize 360° detection without dead angle in the container;
-
Liquid level measurement, adjustable viewing height;
-
The detection sensitivity reaches the industry’s highest standard intelligent algorithm based on in-depth learning of AI
