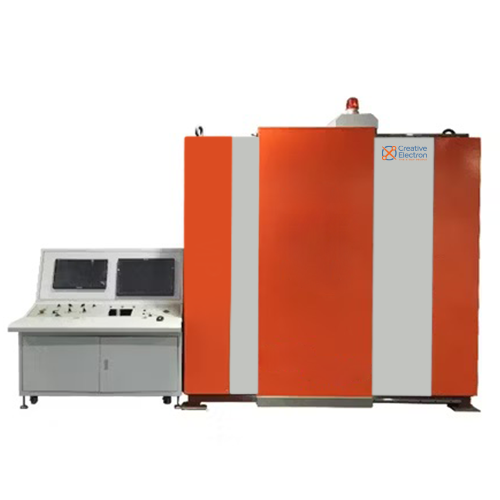

TruView™ 225
X-Ray Inspection Equipment
Widely applied for the non-destructive testing of castings to identify air bubbles, porosity, and foreign material inclusions. The system is also designed for detecting welding defects in cylinders, as well as flaws such as slag inclusions, cracks, looseness, and structural irregularities in components including tire steel cords and belts, hubs, pressure vessels, refractory materials, bullets, boilers, and both welded and seamless pipes. Offering high sensitivity and reliability, it ensures superior quality assurance across demanding industrial applications.
|
Footprint |
2400(W)×2400(D)×2442(H)mm |
|
Machine Weight |
5000 kg |
|
Power Supply |
AC 380V, 50Hz |
|
Power Consumption |
9.0 kW |
|
Tube Type |
Sealed |
|
Max. Power |
800W/1800W |
|
Voltage |
225kV |
|
Focus Spot Size |
0.4mm/1.0mm |
|
Detector |
Flat Panel Detector (FPD) |
|
Pixel Size |
154μm |
|
Effective Detection Area |
430*430mm |
|
Pixel Matrix |
2816*2816 |
|
ASTM Atlas of castings |
Equipped with ASTM standard atlas, you can refer to the comparison, view |
|
Multiple Measuring Tools |
Support Measuring Distance, Angle, Diameter, Polygon,etc |
|
CNC Mode |
CNC Programmable Inspection, Easy Operation and User Friendly |
|
Bubble measurement |
Can automatically measure the porosity per unit area |
|
Motion control mode |
CNC automatic detection/manual detection |
|
Max. Loading Weight |
100kg |
|
Max. Inspection Area |
600*800mm |
|
Oblique Views |
Max. 15° Filting (FPD) / 360° Rotation (Table) |
System Summary
- Footprint: 1790(W)×1380(D)×1930(H)mm
- Machine Weight: 5000 kg
- Power Supply: AC 380V, 50Hz
- Power Consumption: 5.0 kW
X-Ray Tube
- Tube Type: Sealed
- Max. Power: 480W
- Voltage: 160kV
- Focus Spot Size: 0.5mm
Imaging System
- Detector: Flat Panel Detector (FPD)
- Pixel Size: 154μm
- Effective Detection Area: 430*430mm
- Pixel Matrix: 2816*2816
Software
- ASTM Atlas of castings: Equipped with ASTME505/E155 standard atlas, you can refer to the comparison, view
- Multiple Measuring Tools: Support Measuring Distance, Angle, Diameter, Polygon,etc
- CNC Mode: CNC automatic detection mode, teaching mode, manual detection mode
Motion Control System
- Motion control mode: Automatic detection/manual detection
- Max. Loading Weight: 30kg
- Max. Inspection Area: 500*500*200mm
