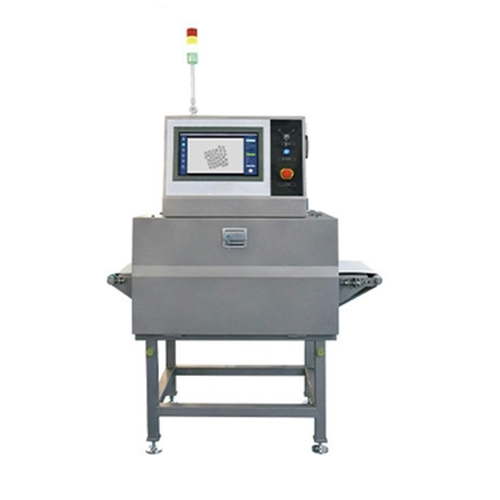

TruView™ 4015N
X-Ray Inspection Equipment
Delivers precise detection of foreign matter in small, lightweight packaged foods, including confectionery, meat, vegetables, noodles, biscuits, jerky, and nuts. Designed for the food industry, the system ensures product safety, quality assurance, and compliance with international standards.
|
Dimension |
1168(W)X985(D)X1510(H)mm |
|
Machine weight |
500kg |
|
X-ray tube |
80-120kv/210-480W |
|
Power Supply |
AC 110/220V, 50/60Hz |
|
Max. Loading weight |
10kg |
|
X-ray detector |
Diode array with 0.4mm resolution |
|
Channel size |
400mm(W)*150mm(H) |
|
Conveyor Speed |
10-60M/min |
|
Heavy load Conveyor Speed |
10-40M/min |
|
Operating Range |
10°C to 40°C (50°F to 104°F)，30% to 90% relative humidity non-condensing |
|
Detection Accuracy |
SUS BALL≥ø0.3mm |
|
SUS wire≥ø0.2*2mm |
|
|
Glass ball≥ø1.0mm |
|
|
Ceramic ball≥ø1.0mm |
|
|
Communications |
1*LAN,2*USB |
|
Communications |
1*LAN,2*USB |
|
Industrial PC |
17″LCD touch screen；Windows 10 |
| Rejector | Sound-Light alarm， flipper,dropout,air jet,Pusher,chute,shuttle |
|
Ingress protection |
Conveyor: IP66, Others: IP65 |
|
X-Ray Safety |
<1μSv/h |
Equipment Features
- Dimension: 1168(W)X985(D)X1510(H)mm
- Machine weight: 500kg
- X-ray tube: 80-120kv/210-480W
- Power Supply: AC 110/220V, 50/60Hz
- Max. Loading weight: 10kg
- X-ray detector: Diode array with 0.4mm resolution
- Channel size: 400mm(W)*150mm(H)
- Conveyor Speed: 10-60M/min
- Heavy load Conveyor Speed: 10-40M/min
- Operating Range: 10°C to 40°C (50°F to 104°F)，30% to 90% relative humidity non-condensing
Capability
- Detection Accuracy
- SUS BALL≥ø0.3mm
- SUS wire≥ø0.2*2mm
- Glass ball≥ø1.0mm
- Ceramic ball≥ø1.0mm
System Computer
- Communications: 1*LAN,2*USB
- Industrial PC: 17″LCD touch screen；Windows 10
Optional configuration
- Rejector: Sound-Light alarm， flipper,dropout,air jet,Pusher,chute,shuttle
Other
- Ingress protection: Conveyor: IP66, Others: IP65
- X-Ray Safety: <1μSv/h
