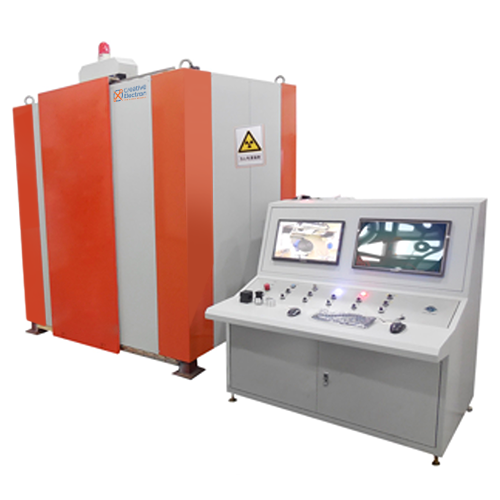

TruView™ 450
X-Ray Inspection Equipment
Engineered for non-destructive testing (NDT) of aluminum castings, ductile iron, and automotive components. The system accurately detects porosity, gas bubbles, and foreign material inclusions, ensuring product quality and reliability.
| Dimensions (L×W×H) | 2423mm*2294mm*2586mm(L*W*H) |
| Equipment Weight | 18.65T |
| Power | 9KW |
| Maximum Penetration (FE) | 70mm |
| Detection Range | Φ500 × 800mm |
| Load Weight | 200kg |
| Work Environment | 5–40°C, ≤80% RH |
| Power Supply | Three-phase five wire, AC380V |
| X-ray Leakage Dose Rate | < 2.5μSv/h |
| Tube Voltage | 450kV |
| Power | 700W / 1500W |
| Focal Size | 0.4mm / 1.0mm (EN12543) |
| Resolution | 3.6 LP/mm |
| Image Area | 250mm × 300mm |
| Pixel Matrix | 1792 × 2176 |
| Pixel Pitch | 139μm |
| Frame Rate | 9 fps (1×1), 30 fps (2×2) |
- Image processing: brightness and contrast adjustment, stacking frames, window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure,move, zoom in, zoom out display image scaling, display the current mouse coordinates and gray values
- Image measurement: distance, radius, polygon, angle measurement; arrows and text labels; save the image after processing;
- Others: setting the camera rotating screen; exposure time; static, dynamic image display and save, video display and save;
- CNC programmable control, to save the detection time of the bulk of the workpiece.
- C type arm five detection mechanism, no dead angle detection Servo stepper motor drive, stable operation.
- Voltage regulator, isolation, filtering, grounding and other protective functions are complete=
- Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis (optional).
System Summary
- Dimensions (L×W×H): 2423mm*2294mm*2586mm
- Equipment Weight: 18.65T
- Power: 9KW
- Maximum Penetration (FE): 70mm
- Detection Range Φ500 × 800mm
- Load Weight: 200kg
- Work Environment: 5–40°C, ≤80% RH
- Power Supply: Three-phase five wire, AC380V
- X-ray Leakage Dose Rate: < 2.5μSv/h
X-Ray Tube
- Tube Voltage: 450kV
- Power: 700W / 1500W
- Focal Size: 0.4mm / 1.0mm (EN12543)
Imaging System
- Resolution: 3.6 LP/mm
- Image Area: 250mm × 300mm
- Pixel Matrix: 1792 × 2176
- Pixel Pitch: 139μm
- Frame Rate: 9 fps (1×1), 30 fps (2×2)
Software
- Image processing: brightness and contrast adjustment, stacking frames, window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure,move, zoom in, zoom out display image scaling, display the current mouse coordinates and gray values
- Image measurement: distance, radius, polygon, angle measurement; arrows and text labels; save the image after processing;
- Others: setting the camera rotating screen; exposure time; static, dynamic image display and save, video display and save;
Functionality
- CNC programmable control, to save the detection time of the bulk of the workpiece.
- C type arm five detection mechanism, no dead angle detection
- Servo stepper motor drive, stable operation.
- Voltage regulator, isolation, filtering, grounding and other protective functions are complete Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis (optional).
