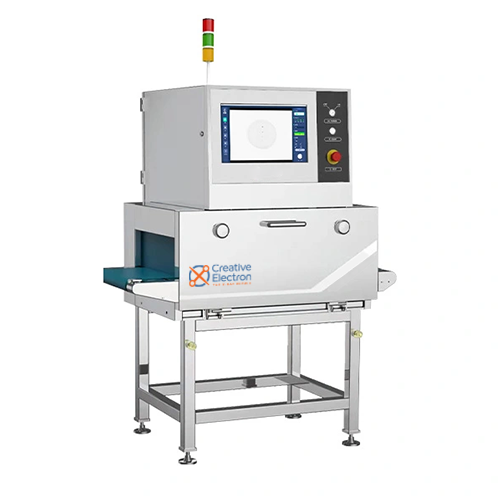

TruView™ 6030 N
X-Ray Inspection Equipment
Designed to detect foreign matter contaminants in large packaged and boxed food products. The system delivers accurate, high-throughput inspection to protect product quality, enhance consumer safety, and ensure compliance with stringent food industry standards.
|
Dimension |
1500(W)X1300(D)X2050(H)mm |
|
Machine weight |
800kg |
|
X-ray tube |
80-120kv/210-480W |
|
Power Supply |
AC 110/220V, 50/60Hz |
|
Max. Loading weight |
15kg |
|
X-ray detector |
Diode array with 0.4mm resolution |
|
Channel size |
400mm(W)*150mm(H) |
|
Conveyor Speed |
10-60M/min |
|
Heavy load Conveyor Speed |
10-40M/min |
|
Operating Range |
10°C to 40°C (50°F to 104°F), |
|
30% to 90% relative humidity non-condensing |
|
Detection Accuracy |
SUS BALL≥ø0.3mm |
|
SUS wire≥ø0.2*2mm |
|
|
Glass ball≥ø1.0mm |
|
|
Ceramic ball≥ø1.0mm |
|
Communications |
1*LAN,2*USB |
|
Industrial PC |
17″LCD touch screen; Windows 10 |
|
Rejector |
Sound-Light alarm, |
|
flipper,dropout,air jet, |
|
|
Pusher,chute,shuttle |
|
Ingress protection |
Conveyor: IP66, Others: IP65 |
|
X-Ray Safety |
<1μSv/h |
Equipment Features
- Dimension: 1500(W)X1300(D)X2050(H)mm
- Machine weight: 800kg
- X-ray tube: 80-120kv/210-480W
- Power Supply: AC 110/220V, 50/60Hz
- Max. Loading weight: 15kg
- X-ray detector: Diode array with 0.4mm resolution
- Channel size: 400mm(W)*150mm(H)
- Conveyor Speed: 10-60M/min
- Heavy load Conveyor Speed: 10-40M/min
- Operating Range: 10°C to 40°C (50°F to 104°F), 30% to 90% relative humidity non-condensing
Capability
- Detection Accuracy
- SUS BALL≥ø0.3mm
- SUS wire≥ø0.2*2mm
- Glass ball≥ø1.0mm
- Ceramic ball≥ø1.0mm
System Computer
- 1*LAN,2*USB
- 17″LCD touch screen; Windows 10
Optional configuration
- Rejector:
- Sound-Light alarm,
- flipper,dropout,air jet,
- Pusher,chute,shuttle
Other
- Ingress protection Conveyor: IP66, Others: IP65
- X-Ray Safety: <1μSv/h
